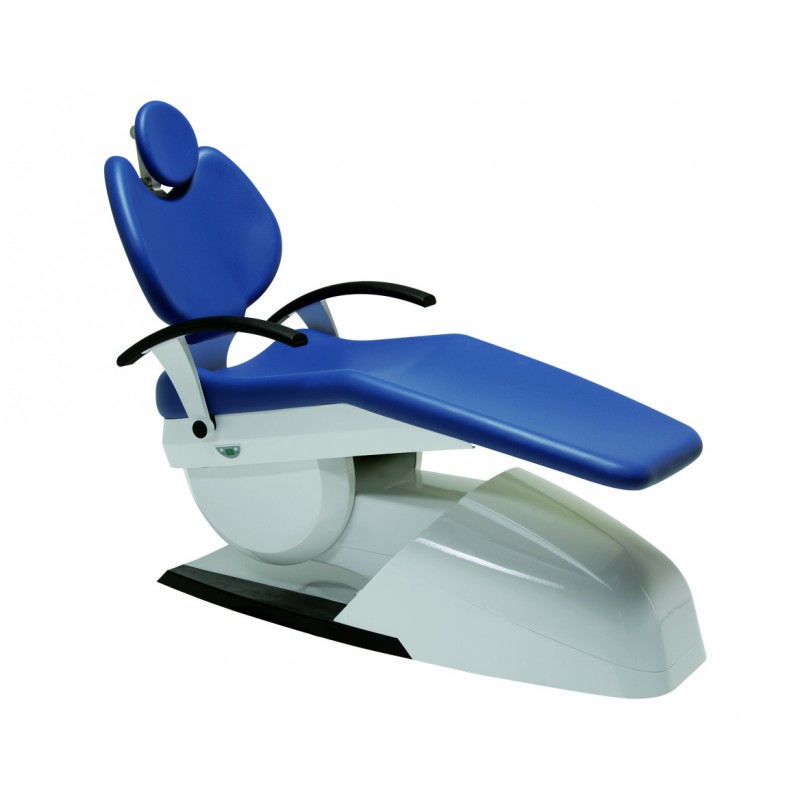

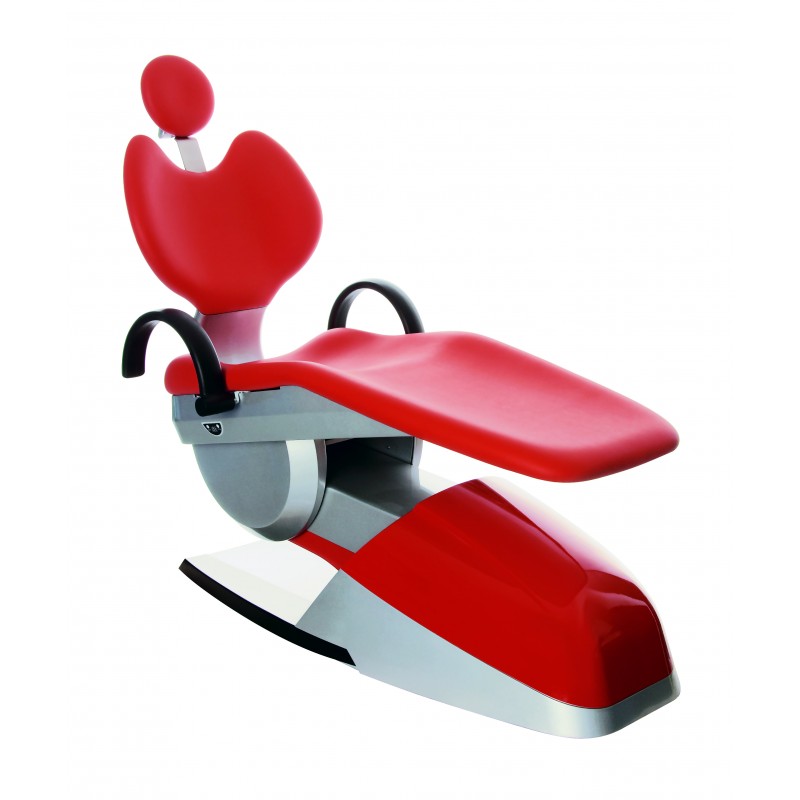

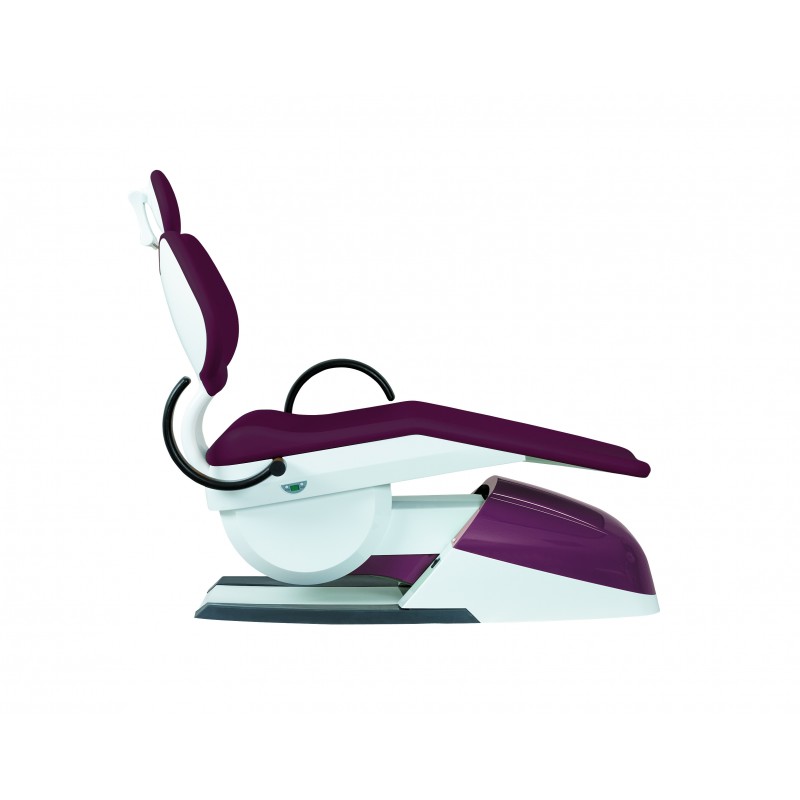

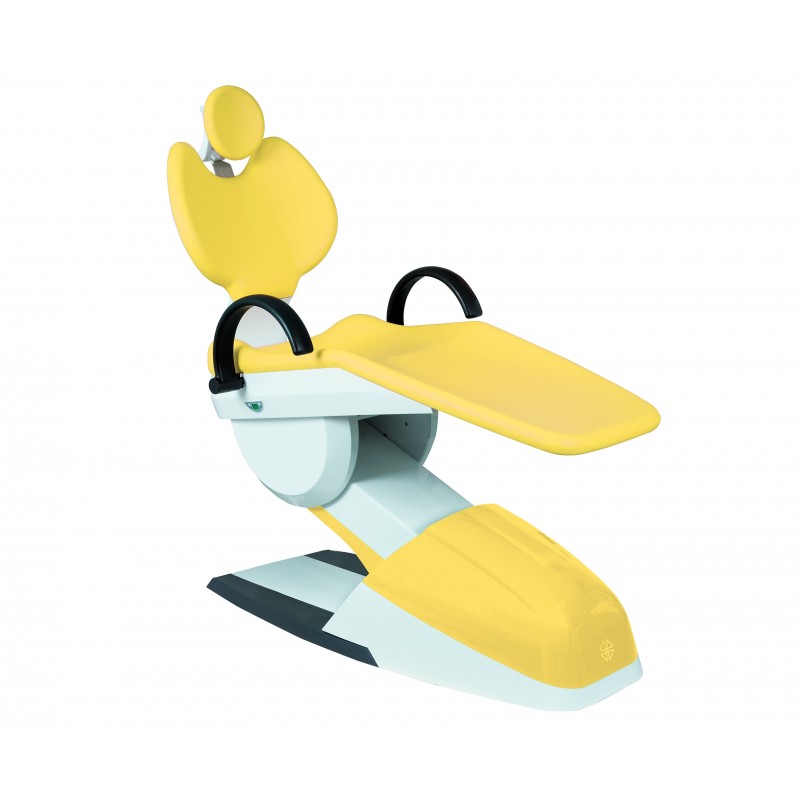

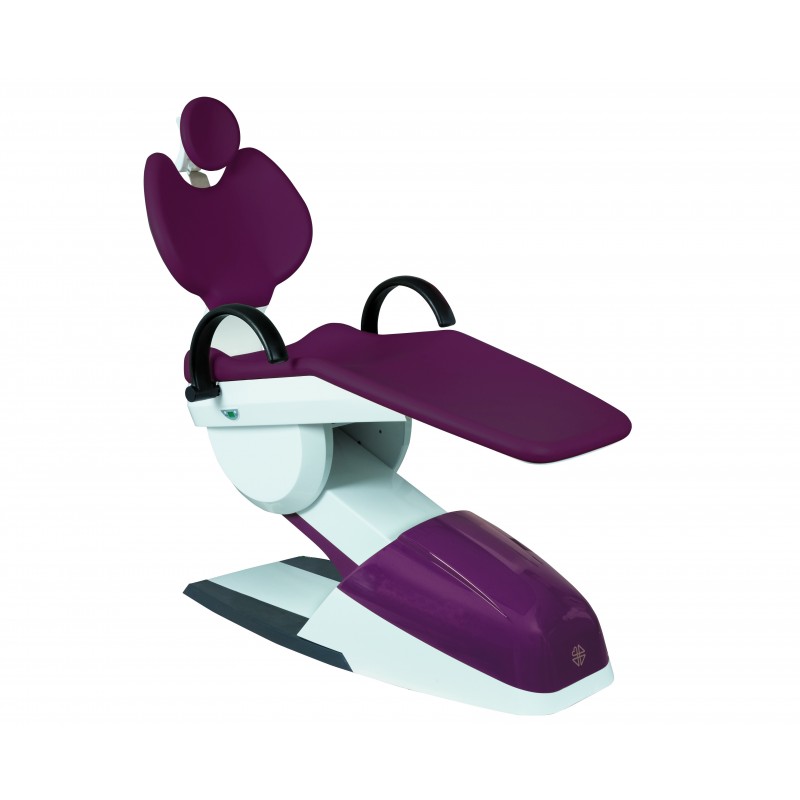

Dental chair Chirana SK1-08
Ranking (5)
10 000,00 €
7 000,00 € including TAX
Discount!
The comfortable and reliable solution for demanding customers!
Availability:
to order
Dental chair SK1-08 is produced from high-tech quality materials originating in the EU. The chair SK1-08 thanks its robust construction, attractive modern design and using advanced technology and materials is designed to satisfy the most demanding customers. There is obvious CHIRANA electric standard of low voltage (12/24V) inside dental chair including all actuator motors without any reduction of its power and performance.
Basic parameters:
- Possibility of programming 4 working positions independently for 4 users (4x 4) with visual control at display

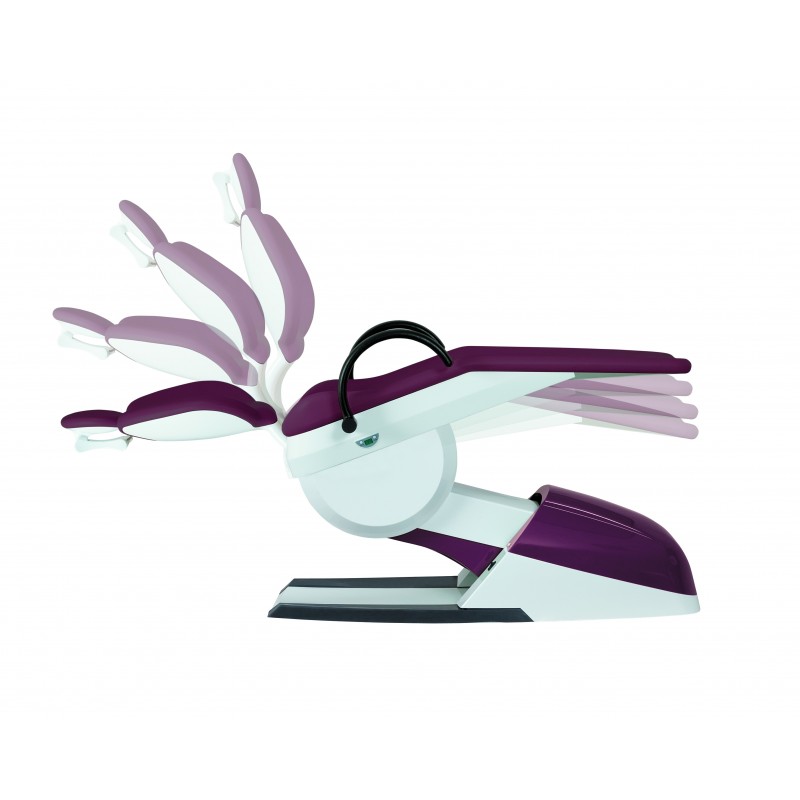

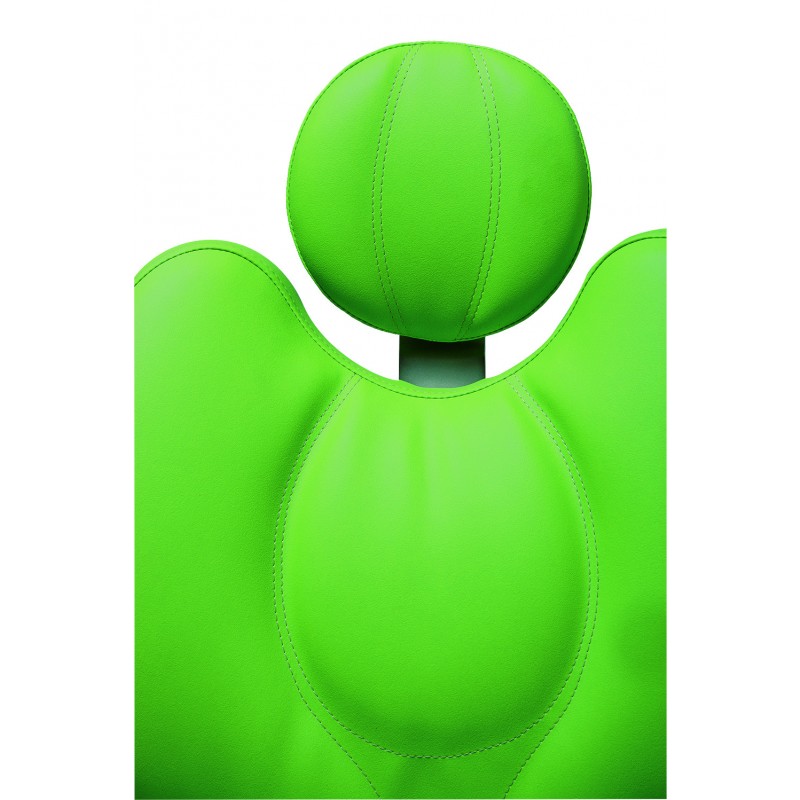

- The anatomical shape of the seat and backrest together with special synchronized elliptical movement averts unwanted "stripping effect" of the patient
- The air-permeable seamless coating
- Electronically controlled movement of the backrest and seat
- Construction of chair is designed to built whole power box of dental unit (power, water and pressure air supply including waste drain system) under the front cover of the chair for clean design of dental surgery without any boxes, hoses or cables on the floor
- The movement of chair is performed by two powerful low voltage (24V) drive actuators Linak
- The quality of used materials and components allows to combine robustness of whole construction together with attractive design and first of all comfort for the patient
- The complex quality of chair is fashioned by used technologies as aluminium casting of mechanical parts, accurate polyurethane spray of soft parts and plastic covers, Swiss-Made leather etc. as well
- Load: 185 kg
Optional armrests:
- Left armrest - fixed
- The right armrest - foldable
The chair conforms to the standard | STN EN ISO 6875 (Dental Patient Chair) |
---|---|
Rated Voltage | 230V ~, 220V ~ (110V ~) ± 10% |
Rated frequency | 50 - 60 Hz ± 2% |
Maximum power at 50 Hz | 300 VA |
Degree of protection against electric shock. Stream | B |
Type of protection against electric shock. Stream | I |
Degree of protection | IPX1C |
Ambient temperature range From | + 10 ° C to + 40 ° C |
Relative humidity range from | 30% to 75% |
Atmospheric pressure range from | 70,0 kPa to 106,0 kPa |
Chair weight | 125 kg ± 5% |
The chassis is designed for a load of | 200 ± 5kg. |
Minimum seat position | 460 ± 10 mm from the floor |
Maximum seat position | 890 ± 20 mm from the floor |
Base position of the backrest | 24o ± 3o from the vertical plane. |
Base position of the seat | 10 ° ± 2 ° from the horizontal plane. |
Maximum seat angle | 22o ± 2o from the horizontal position. |
Maximum angle of inclination of the backrest under the horizontal plane | -6o ± 2 °. |
The chord may carry an additional device, its center of gravity may be max. | 500 mm from the longitudinal axis of the chair chair. |
The headrest is heightlessly adjustable mech. | Control (140 mm) for el. Feed rate (105 mm) |
Folding the head restraint | Forward or backward about two pins. |
The chunk is designed for intermittent operation | Type of load / 2 min. Run - 18 min. peace /. |
The chord is programmable for two users | 2x4 freely programmable positions |
Predicted Average Run-Off Time | 10,000 cycles (1 cycle = all movements from one extreme position to another). |
Chair life | 10 years. |
