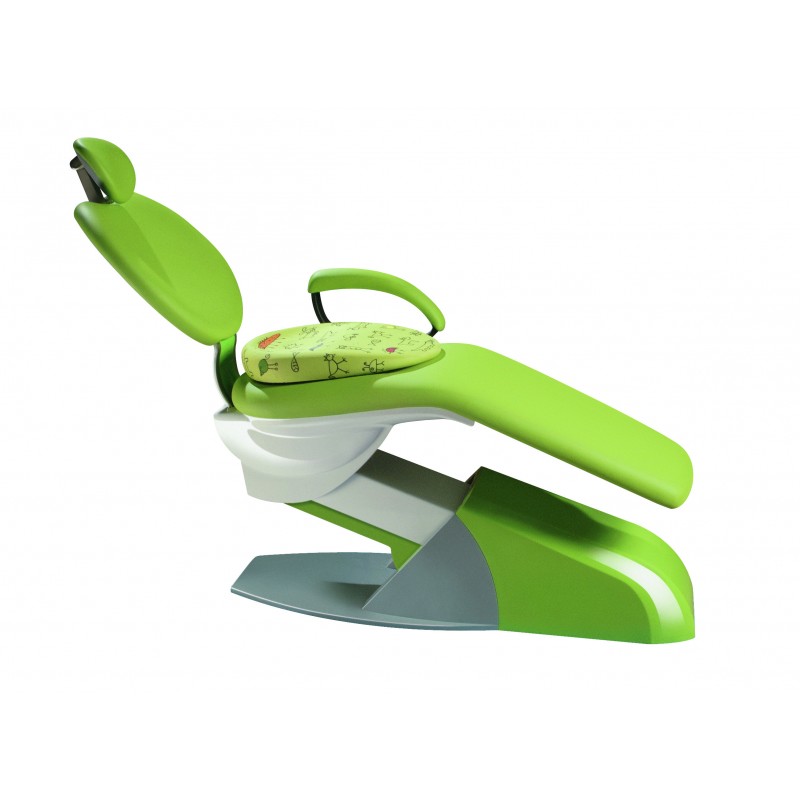

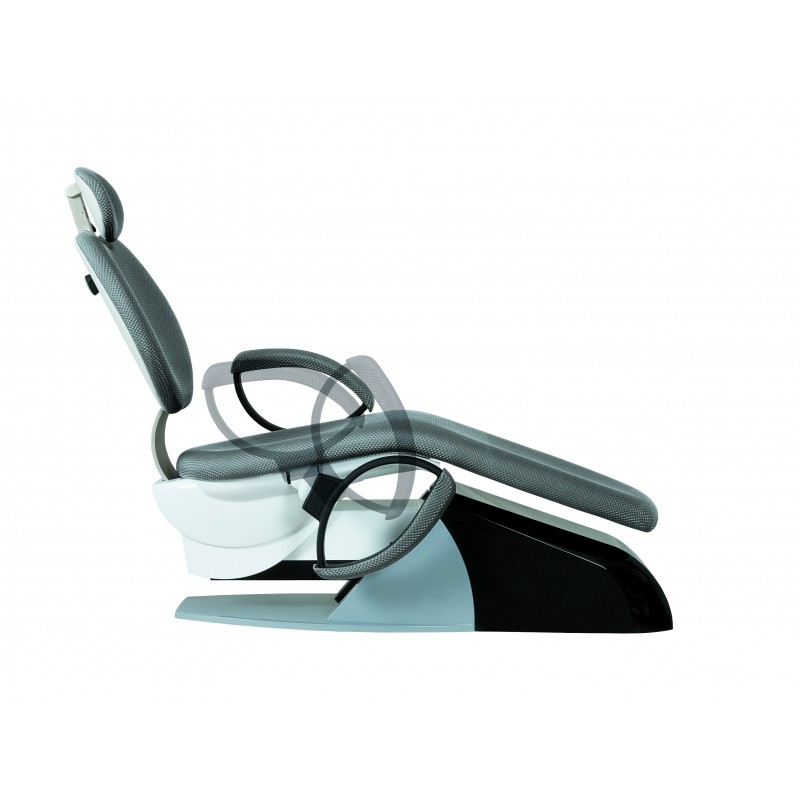

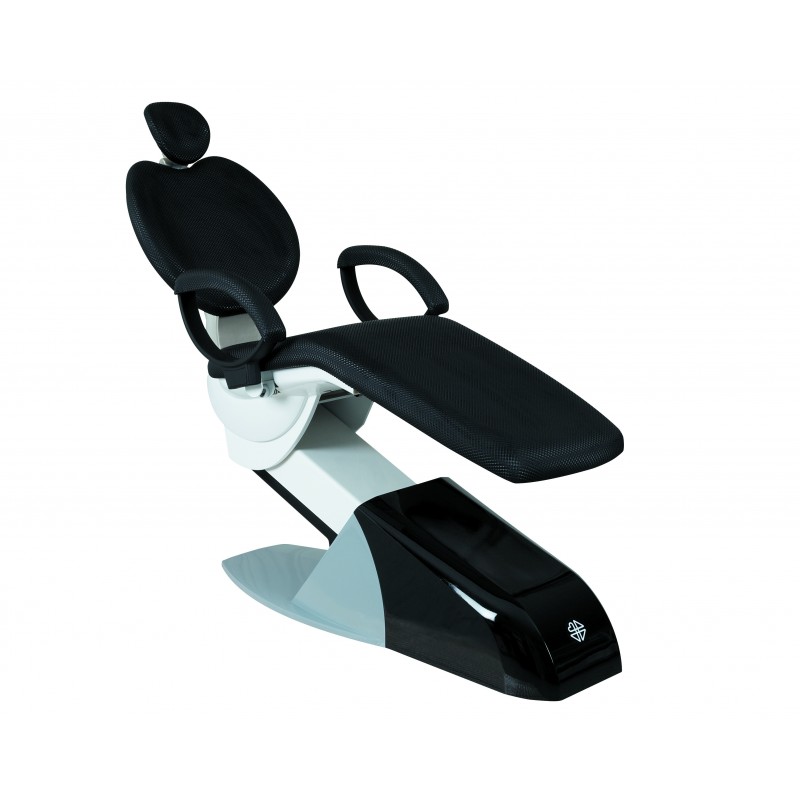

Dental chair Chirana SK1-01
Ranking (5)
6 445,00 €
4 512,00 € including TAX
Discount!
Reliability, ergonomics, comfort !
Availability:
to order
Dental chair SK1-01 is made from high-tech quality materials originating in the EU. Slim and attractive design of dental chair SK1-01 represents safe and reliable performance for one of the lowest prices in the market, without any compromise in its quality. There is obvious CHIRANA electric standard of low voltage (12/24V) inside dental chair including all actuator motors without any reduction of its power and performance.
Basic parameters:
- Possibility of programming 4 working positions
- The anatomical shape of the seat and backrest together with special synchronized elliptical movement averts unwanted "stripping effect" of the patient
- The air-permeable seamless coating
- Construction of chair is designed to built whole power box of dental unit (power, water and pressure air supply including waste drain system) under the front cover of the chair for clean design of dental surgery without any boxes, hoses or cables on the floor
- Additional removable hygienic cover under the legs of patient
- Chair height adjustable from 42 cm up to 87 cm
- The movement of chair is performed by two powerful low voltage (24V) drive actuators Linak
- The quality of used materials and components allows to combine robustness of whole construction together with attractive design and first of all comfort for the patient
- Load: 185 kg
Optional backrests:
- Universal standard backrest
- The backrest with a deeper slot (to achieve a lower position headrests than the standard, ideal for children patients)
- The extended wide backrest
The chair conforms to the standard | STN EN ISO 6875 (Dental Patient Chair) |
---|---|
Rated Voltage | 230V ~, 220V ~ (110V ~) ± 10% |
Rated frequency | 50 - 60 Hz ± 2% |
Maximum power at | 50 Hz |
Atmospheric pressure | 70,0 kPa to 106,0 kPa |
Ambient temperature | + 10oC ÷ + 40oC |
Relative humidity | 30% ÷ 78% |
Degree of protection against electric shock. Stream | B |
Type of protection against electric shock. current | I |
Degree of protection | IPX1C |
Chair weight | 100 kg ± 5% |
The chassis is designed for a load of | 185 kg / 135 kg patient + 50 kg carried device / |
In the case of a chair with a load of | 80 kg, the sound pressure level must not exceed 54 dB / A / |
Minimum seat position | 420 ± 20 mm from the floor |
Maximum seat position | 870 ± 20 mm |

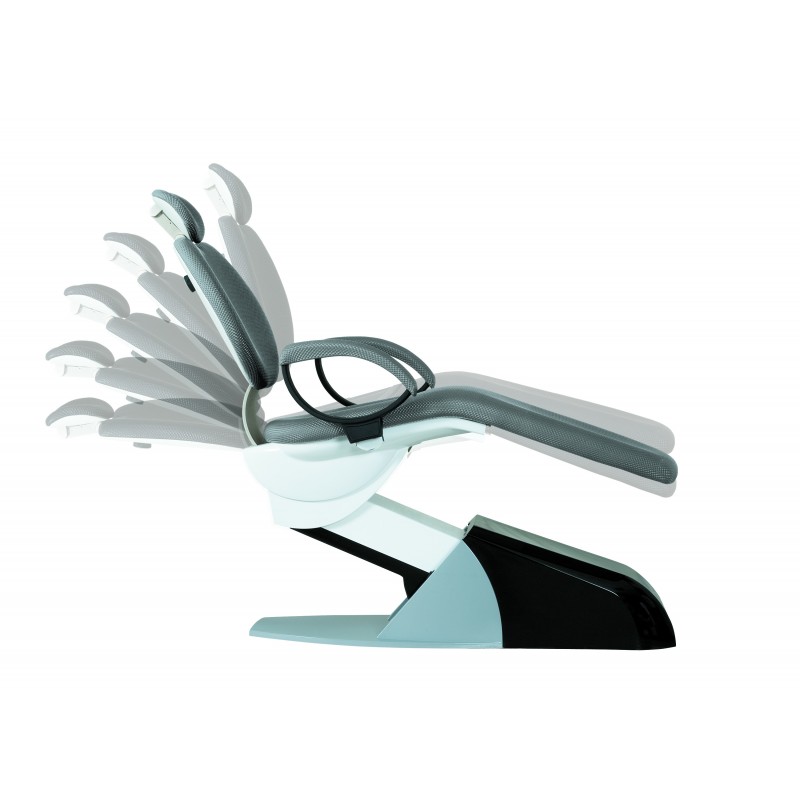

The base position of the backrest is | 18o ± 3o from the vertical plane |
Base position of the seat | 12o ± 2o from the horizontal plane. |
The maximum tilt position of the tilt chair is | 17 ° ± 2 ° from the horizontal position (prev. 500, 600). |
The chunk can carry an additional device of max. Weight | 50 kg |

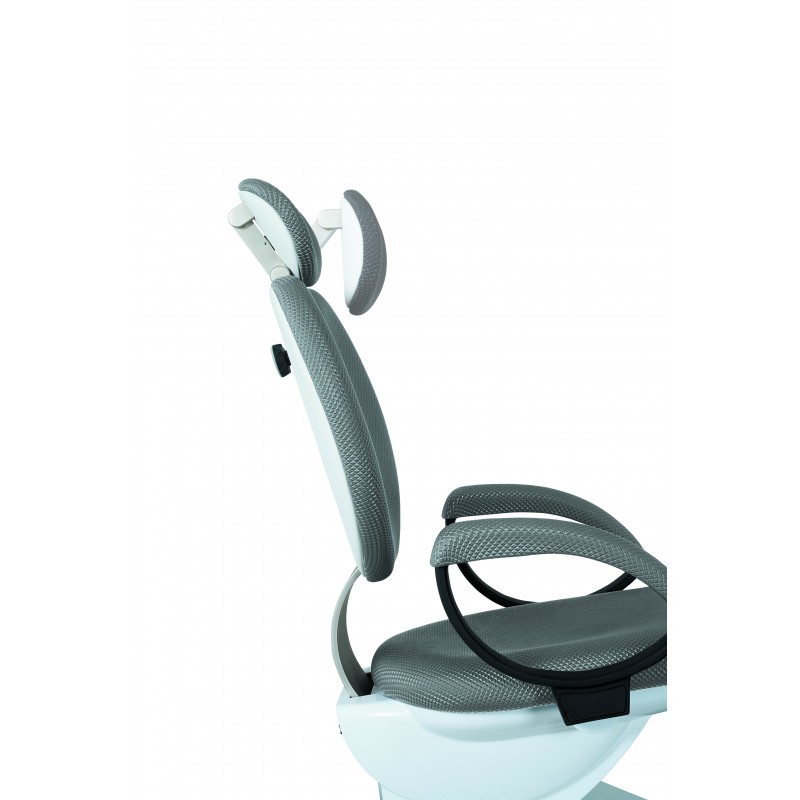

The headrest is height-adjustable by | 165 mm height. |
After loosening the claw mechanism, the head restraint can be tilted | Forward or backward about two pins. |
The head restraint is electrically adjustable in height | 100 mm, motor-adjustable is 5 ° ± 1 ° forward and 40 ° ± 2 ° to the rear (prev 600, 700). |
The chunk is designed for intermittent operation | Type of load 2 min. Run - 18 min. peace /. |
The charts are programmable | 4 freely programmable positions |
Predicted Average Run-Off Time | 3,000 cycles (1 cycle = all movements from one extreme position to another). |
Chair life | 10 years. |
