Phosphor plate scanner S&S
4 428,00 € including TAX
Phosphor plate scanner
Availability:
to order

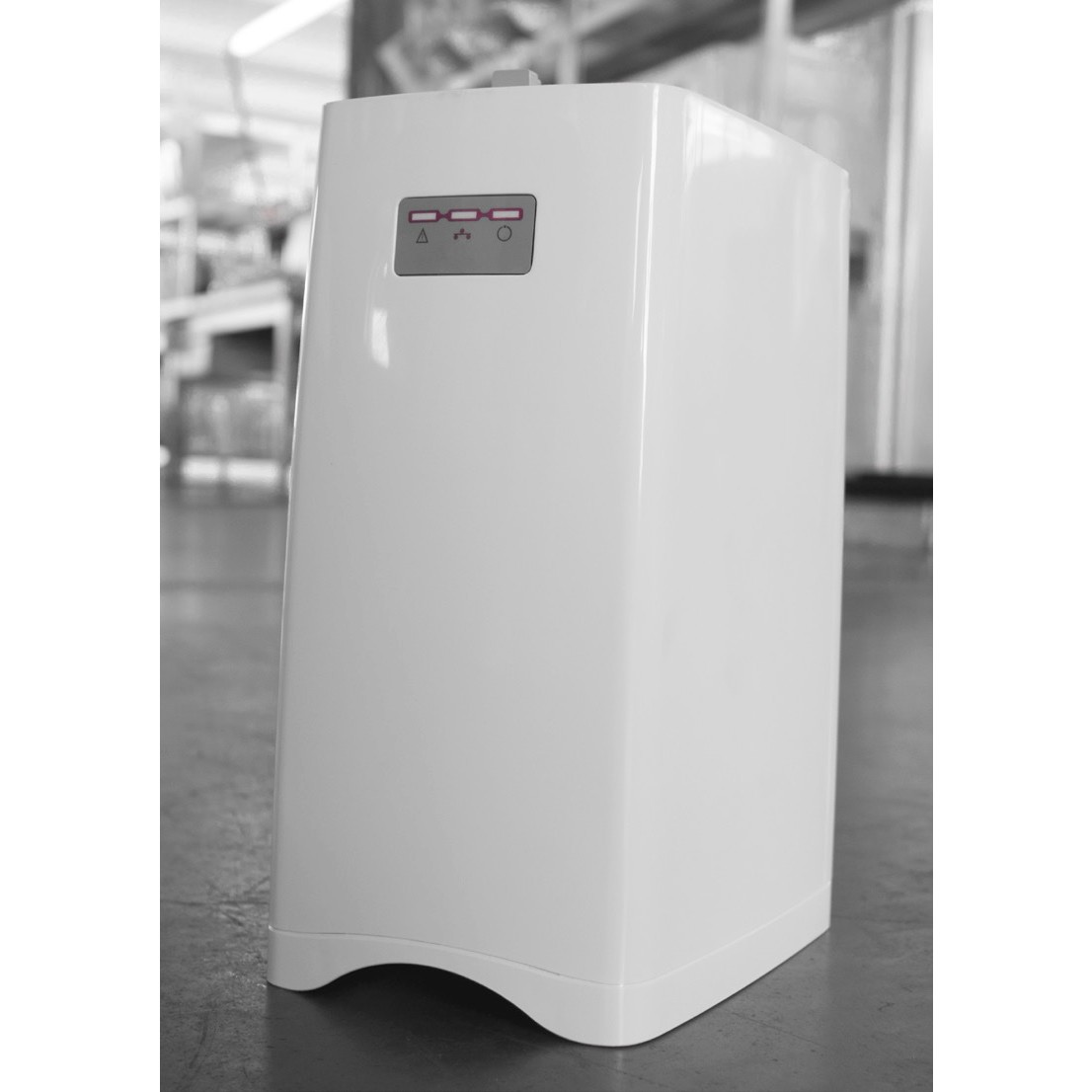

Simple&Smart Phosphor plate scanner
High Frequency intraoral X-Ray - EASY INSTALLATION
The easier way to clear and lasting images. Make the move to digital imaging with the most
advanced and flexible solution that combines all the advantages of the latest generation
technologies for an outstanding diagnostic quality.
The scanner was designed for maximum simplicity: No buttons, just connect the device directly to your computer via USB connection and start to scan.

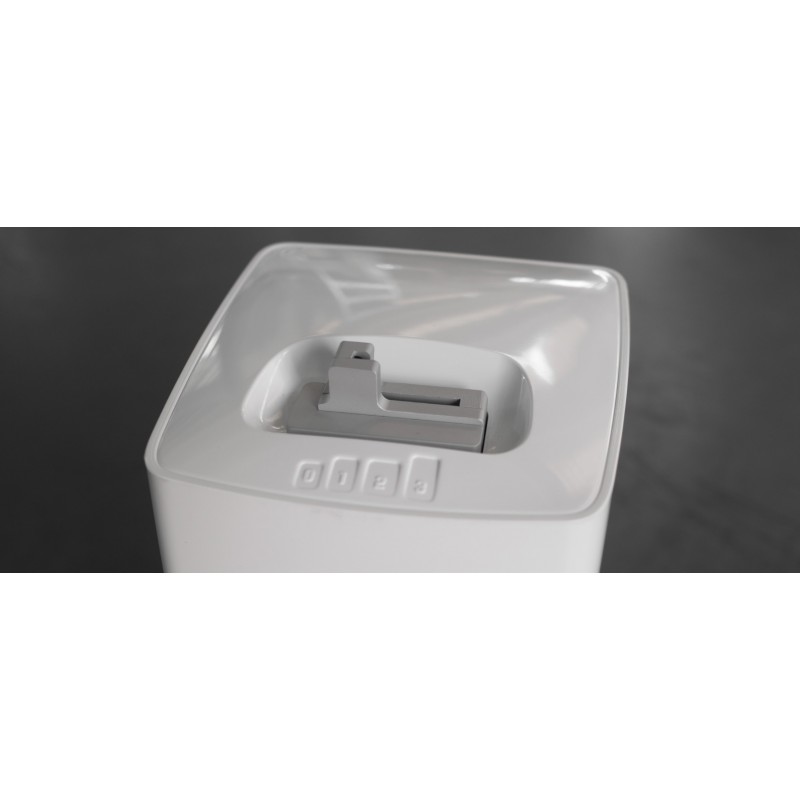

Once the plate is inserted into the slot, The scanner automatically recognizes the plate’s size and starts to work. Viewer delivers highly precise digital images to any PC in less than 10 seconds.
User-friendly operation
Powerful imaging software
Real resolution 14.3 lp/mm
DICOM network compatibility
Plates erase automatically
The software allows DICOM network compatibility. Archimed is easy to integrate and the
process of making-analyze images is quick and simple. With user-friendly interface and
functional image processing tools, Archimed makes the shole procedure even more dynamic
and faster than ever.
With a 100% active surface, rounded corners and cable-free, S&S phosphor plates are created to grant the comfort of your staff and patient.
Plates come with the exclusive double guard
system: the sleeves offer an effective barrier against cross infection and the protective cover,
an extra protection that helps to extend the
plates life. S&S phosphor plates can be reused hundreds of times and are as easy to use as film.

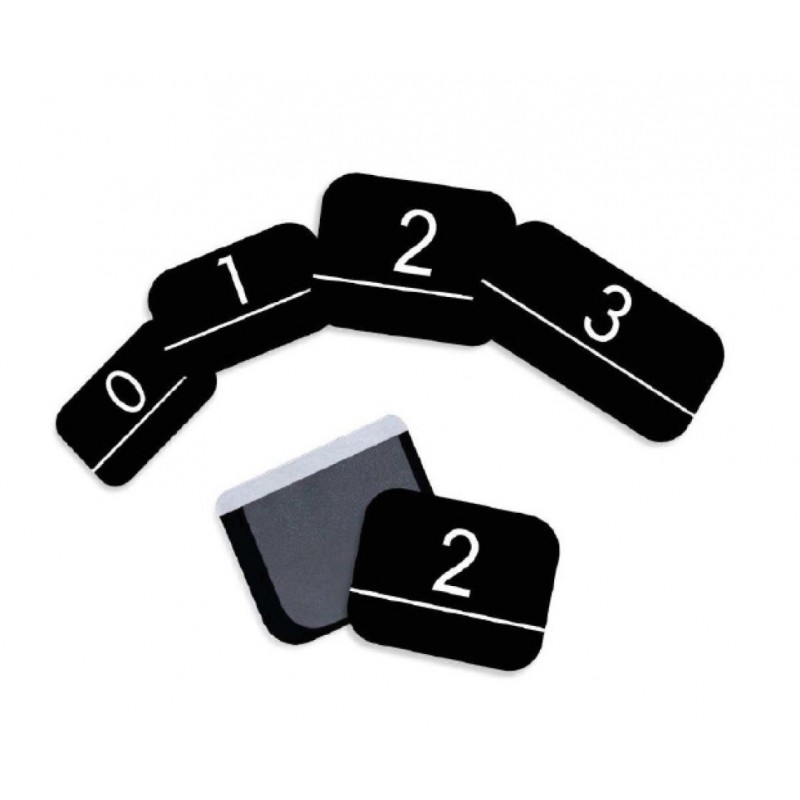

Available in four sizes, ideal for all clinical uses:
Size 0 31 x 22 mm, 726 x 1024 pixel
Size 1 40 x 24 mm, 792 x 1321 pixel
Size 2 41 x 31 mm, 1024 x 1354 pixel
Size 3 54 x 27 mm, 891 x 1783 pixel
Technical data | |
---|---|
Plate sizes | 0,1,2,3 |
Plate size identification | Automatic |
Reading time | Less than 10 Sec. |
Resolution | 14,3 lpm |
PC connection | USB2 |
Weight | 7 Kg |
Power supply | 100/240 V, 50/60 Hz, 24 W |
Measures | 170 x 190 x h300 mm |
Sensitivity settings | Automatic, on the required dose level |
Software | ARCHIMED |
MINIMUM SYSTEM REQUIREMENT | |
Processor Intel | 32/64 bits dual core |
Memory | At least 2 GB |
Screen size | 17”/19” HD |
Matrix Display | 1280 x 1024 |
Video memory card | 128 MB |
Hard Disk | >100 GB |
