EKOM DUO

Ranking (5)
5.00 z 5

3 520,00 €
3 168,00 € including TAX Discount!

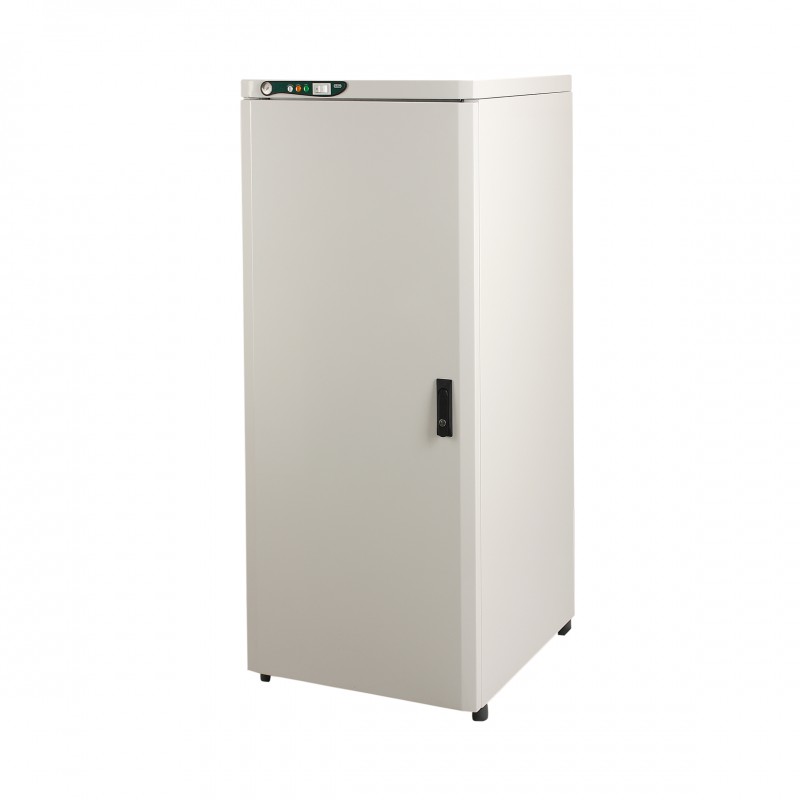

Oil-less compressor with suction

Availability:
to order

DUO - for one dental unit (combination of compressor model DK50 PLUS with suction for one dental unit)

Suction pumps are controlled by dental unit switch and supplied by power (24V) from preassembled module „T“

compressor and suction in one

Oil-less compressor EKOM with suction pump of the line DUO is the source of clean, pressed, oil-free air and at the same time the source of underpressure for dental equipments and devices. With regard to its parameters and capacity of the air tank of 25 litres is suitable for supplying of one dental unit equiped with the suction unit. Air produced by oil-free compressor provides a higher degree of hygiene and quality of work of the dentist and does not pollute the working environment by heterogeneous substances. By its design the product is suitable for placing directly in the dental surgery as an integral part of dental furnishings.



Number of dental units 1
Nominal voltage 230V/ 50 (60) Hz
Max. current 6,7 (8) A
Operating voltage 24/0,1 V/A DC/AC
Compressor efficiency 70 l.min– 1/ 6 bar
Displacement 105 l.min– 1
Working pressure of compressor*1 6– 8 bar
Air tank capacity 25 lit.
Mode of operation S1-100%
Noise level ≤ 47 dB [A]
Weight*2 108 kg
Dimensions (w x d x h)*2 560x640x1250 mm
